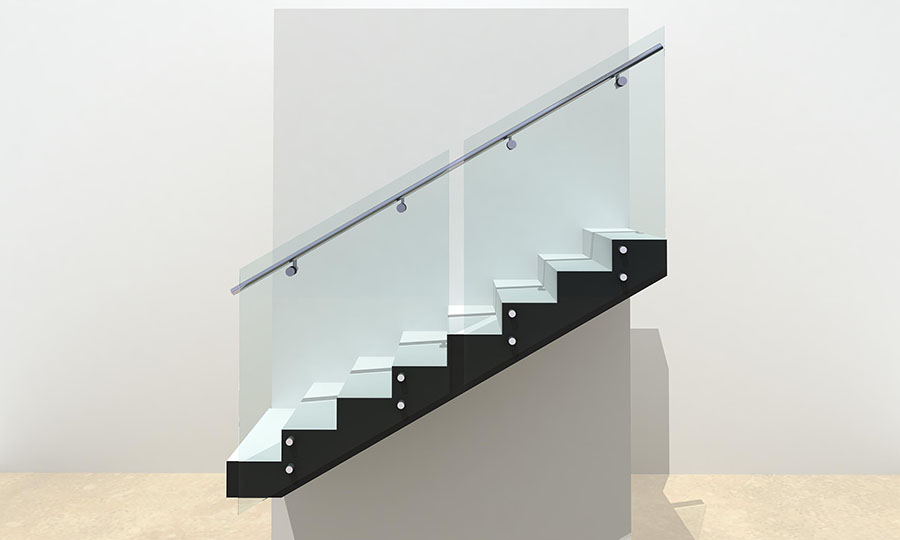

The X1 Series point fixed frameless glass balustrade with round handrail system is designed to fix to the face of the landing or stair stringer structure, with stainless steel point fix standoffs, without the use of any stanchions.
It can be fixed to a concrete slab edge with a minimum depth of 240mm, masonry, timber framing or steel beams.
The 38 diameter handrail complies with the requirements of AS 1428.1 whilst also complying with the “interlinking handrail” requirements of AS 1288.
For a project specific specification in word format and project specific CAD files please contact our design team on 07 3272 4599 or email us who will be more than happy to assist.
Alternatively the following generic specification for this configuration can be copied and pasted:
Where shown on the drawings.
System: THUMP ARCHITECTURAL FITTINGS ‘X1 Series’ – with pin fixed X1PF fittings with GR38P handrail with toughened glass glazed infill panels. Handrail to be mounted to internal face of glass.
Contact: Anthony Newman T: 07 3272 4599 or email us
Infills: 12mm minimum thick (subject to project specific Thump engineering) Grade A toughened clear safety glass 1500mm maximum width with heights AFFL and spacings as per drawings and manufacturers recommendations. Pre-drill glass for brackets to supports and handrails and finish glass with smooth corners and edges to meet NCC requirements. If the top of the glass is over 5 metres above the ground below then it must also be “heat soaked”.
Supports: Stainless steel supports sized by manufacturers engineer to each glass panel and fascia fixed to substructure.
Handrails: Stainless steel handrails connecting adjacent panels and continuous around corners, shall be as detailed and have 2 No minimum Thump X1 series stainless steel brackets to each glass panel. Handrails to ramps and stairs to comply with AS1428 suite.
Finish: All stainless steel to be 316 grade, and shall have pre-assembly ‘Linished Finish’ to maximum 0.5 Ra, with post-assembly electro polished finish to all external applications.
Install in accordance with the manufactures recommendations and to meet AS1170, AS1170.1, AS1288-2006 and AS1428 where required. Allow for installation by THUMP.
